In industrial laser cutting and welding, consumable performance directly dictates cut quality, processing speed, and component longevity. High-precision consumables protect sensitive optics, maintain stable gas dynamics, and prevent costly machine downtime.

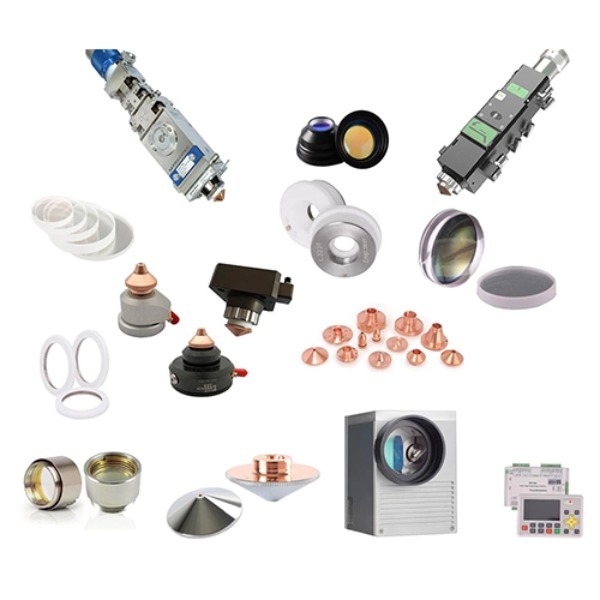

Core Consumable Components
• Laser Nozzles: Direct assist gas ($text{N}_2$, $text{O}_2$, or air) to clear molten metal from the cut kerf.
o Single Nozzles: Used for high-speed nitrogen/air cutting of stainless steel, aluminum, and thin mild steel.
o Double Nozzles: Feature coaxial gas flow for high-pressure oxygen cutting of medium-to-thick carbon steel.
• Protective Cover Windows: Ultra-pure fused silica slides positioned at the base of the laser head to shield internal optics from spatter, dust, and back-reflection.
• Focusing Optics: High-purity quartz or $text{ZnSe}$ lenses that concentrate laser energy to a precise focal point with minimal heat absorption.
• Ceramic Isolators: Thermally insulate the cutting head while serving as electrical sensors for automated capacitive height tracking.
• Seals & O-Rings: High-temperature gaskets that keep gas contaminants and moisture out of the optical assembly.
