Pug Cutting Mashine

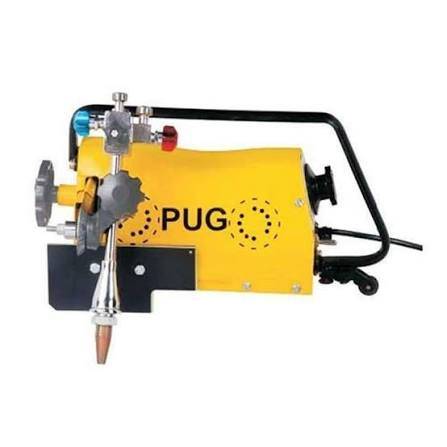

A pug machine (most commonly known as a pug cutting machine or pug cutter) is a portable, semi-automatic gas-cutting tool used in steel fabrication and heavy engineering to make highly precise, straight, circular, or bevelled cuts on metal plates. [1, 2, 3]

The machine earned the nickname "pug" because it functions like a little mechanical tractor—quietly and consistently crawling along a track at a controlled speed while pulling the cutting torch with it. [1, 2]

How a Pug Machine Works

A motorized, wheeled carriage acts as the base, running on an extendable aluminium track (usually supplied in standard 1.8-metre sections) to ensure perfectly straight cuts without any wobbling. An operator manually sets the machine's travel speed using an adjustable dial to match the thickness of the metal sheet. [1, 2, 3, 4]

The cutting process typically relies on an oxy-fuel system combining oxygen with a fuel gas like Acetylene or LPG/Propane. The combination creates an intense, high-temperature flame that pierces through mild steel plates ranging from 3 mm up to 100 mm (or more) in thickness. [1, 2, 3, 4]

Key Capabilities & Applications

Straight-Line Cutting: Perfect for splitting large steel sheets or plates uniformly into strips or parts. [1, 2]

Circle & Radius Cuts: By attaching a specialized radius arm/circle attachment, the machine can pivot on a single point to slice clean circular holes or discs ranging from 75 mm to over 1,100 mm in diameter. [1, 2]

Bevel Cutting: The torch holder features a rack-and-pinion design that allows the torch to swivel up to 45 degrees, making it incredibly easy to prep plate edges for V-joints or weld prep. [1, 2, 3]

Nozzle Mix (NM) Safety: Modern variants (like the popular ESAB PUG NM models) utilize "nozzle-mixing" technology, where the gases combine at the very tip of the nozzle rather than inside the torch body, drastically lowering the risk of hazardous backfires. [1, 2, 3]
